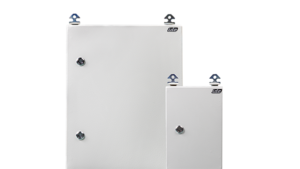

IP66 ATEX Certified wall-mounting cabinets
Technical Data
| Degree of protection | |
| Rolled steel cabinets | IP66 / NEMA 1, 4, 12. |
| Stainless steel cabinets | IP66 / NEMA 1, 4, 4x, 12. |
| Resistance to impact | To IK10 |
| Ambient temperature range | |
| Cabinets with polyurethane sealing gasket | -25ºC / +60ºC |
| Cabinets with silicone rubber gasket | -55ºC / +100ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
Certifications
Compliant with the 2014/34/UE directive.
Certified by LOM: Cabinets with polyurethane sealing gasket.
UNE-EN 60079-0, UNE-EN 60079-7 and UNE-EN 60079-31 standards.
Certified by DEKRA: Cabinets with silicone rubber gasket.
Standards: CEI 60079-0, CEI 60079-31 and CEI 60079-7 standards.
II 2G – Ex eb IIC Gb.
II 2D – Ex tb IIIC Db.
| Reference | Dimensions (mm) | Dimensions (mm) | Dimensions (mm) | Door Type | Characteristics |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | dxf | 3D | ||||||
| ATX302015 | 300 | 200 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX302515 | 300 | 250 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX303015 | 300 | 300 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX303020 | 300 | 300 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX403020 | 400 | 300 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX404020 | 400 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX406020 | 400 | 600 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX504020 | 500 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX604020 | 600 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX604025 | 600 | 400 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX605025 | 600 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX606025 | 600 | 600 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX705025 | 700 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX806030 | 800 | 600 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX808030 | 800 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX1008030 | 1000 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
| Reference | Dimensions (mm) | Dimensions (mm) | Dimensions (mm) | Door Type | Characteristics | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | dxf | 3D | ||||||
| ATX302015/INX | 300 | 200 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX302515/INX | 300 | 250 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX303015/INX | 300 | 300 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX403020/INX | 400 | 300 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX404020/INX | 400 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX406020/INX | 400 | 600 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX504020/INX | 500 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX604020/INX | 600 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX605025/INX | 600 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX606025/INX | 600 | 600 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX705025/INX | 700 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX806030/INX | 800 | 600 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX808030/INX | 800 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX1008030/INX | 1000 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
| Reference | Dimensions (mm) | Dimensions (mm) | Dimensions (mm) | Door Type | Characteristics | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | dxf | 3D | ||||||
| ATX302015/INX-316 | 300 | 200 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX302515/INX-316 | 300 | 250 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX303015/INX-316 | 300 | 300 | 150 | Single door | With mounting plate |
|
|
|
|
|
| ATX403020/INX-316 | 400 | 300 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX404020/INX-316 | 400 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX406020/INX-316 | 400 | 600 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX504020/INX-316 | 500 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX604020/INX-316 | 600 | 400 | 200 | Single door | With mounting plate |
|
|
|
|
|
| ATX605025/INX-316 | 600 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX606025/INX-316 | 600 | 600 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX705025/INX-316 | 700 | 500 | 250 | Single door | With mounting plate |
|
|
|
|
|
| ATX806030/INX-316 | 800 | 600 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX808030/INX-316 | 800 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
| ATX1008030/INX-316 | 1000 | 800 | 300 | Single door | With mounting plate |
|
|
|
|
|
Product range
Standard: Cold-rolled steel cabinets with injected polyurethane sealing gasket.
Stainless steel (AISI 304L or AISI 316L), with injected silicone rubber gasket.
On request: Cabinets without plate, and rolled steel cabinets with silicone rubber gasket.
Stainless steel (AISI 304L or AISI 316L), with injected silicone rubber gasket.
On request: Cabinets without plate, and rolled steel cabinets with silicone rubber gasket.
Materials
Cold-rolled steel EN 10130+A1, coated with hardened RAL 7035 epoxy-polyester paint, embossed.
AISI 304L and 316L stainless steel, Scotch 320 satin finish.
AISI 304L and 316L stainless steel, Scotch 320 satin finish.
Supply
Supplied in individual packaging containing cabinet, plate and accessory bag.
Technical data
ATEX Series
Certifications
LOM CERTIFICATE ARGENTA ATEX CE CERTIFICATE ARGENTA ATEX INOX
CE CERTIFICATE ARGENTA ATEX
Installation Instructions
Installation instructions: Argenta ATEX INOX cabinets Installation instructions: Argenta ATEX cabinets
