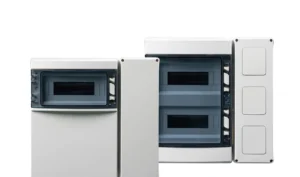

Join of distribution boxes and boxes for industrial sockets

Technical Data

Degree of ptotection IP65
Resistance to impact IK08
Glow wire resistance 650 ºC
Ball pressure test 70 ºC
Ambient temperature range -25 ºC / +40 ºC
Maximum operating voltage 1000V AC / 1500V DC
Double insulation Class II

Certifications

CE DVE
STAR Certifications.
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
ECOLOGY Certifications.
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and IEC 62208:2011.
Eco-Star System
ReferenceNo. of modulesComponentsDimensionsNo. of lids placeholder Drawings TD
References(HeightxWidthxDepth)pdfdxf3D
CSN12PT/PLUS 1x12 DIN rail + additionalCSN12PT + CSNPLUS436x452x147-
Ficha Técnica
CSN18PT/PLUS 1x18 DIN rail + additionalCSN18PT + CSNPLUS436x560x147-
Ficha Técnica
PCSN12PT/PLUS
1x12 DIN rail + additional
PCSN12PT +PCSNPLUS
436x452x147
19
Ficha Técnica
PCSN18PT/PLUS 1x18 DIN rail + additionalPCSN18PT +PCSNPLUS436x560x14725
Ficha Técnica
CDN24PT/PLUS
2x12(24) DIN rail + additional
CDN24PT + PCSNPLUS
436x452x147
5
Ficha Técnica
CDN36PT2F/PLUS 2x18(36) DIN rail + additionalCDN36PT2F+PCSNPLUS436x560x1475
Ficha Técnica
