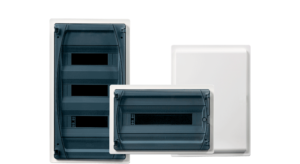

IP40 Flush-fit distribution boxes with plastic door
Technical Data
| Degree of protection | IP40 |
| Resistance to impact | IK08 |
| Glow wire resistance | |
| Hollow walls | 850 ºC |
| Brick walls | 650 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
Certifications
Compliant with the Low Voltage Directive 2014/35/EU.
Standards: EN-IEC 60670-1-24 E IEC-EN 62208.
Standards: EN-IEC 60670-1-24 E IEC-EN 62208.
| Reference | No. of modules | External dimensions | Dimensions of the flush-fit gap | Door type | Characteristics |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | (HeightxWidthxDepth) | dxf | 3D | |||||||
| BM4PO | 1x4 DIN rail | 228x120x97 | 228x120x65 | White plastic door | - |
|
|
|
|
|
| BM8PO | 1x8 DIN rail | 248x210x97 | 228x190x65 | White plastic door | - |
|
|
|
|
|
| GPE12PO | 1x12 DIN rail | 284x316x97 | 256x288x74 | White plastic door | - |
|
|
|
|
|
| GPE12PT | 1x12 DIN rail | 284x316x97 | 256x288x74 | Transparent plastic door | - |
|
|
|
|
|
| GPE18PO | 1x18 DIN rail | 284x424x97 | 256x396x74 | White plastic door | - |
|
|
|
|
|
| GPE18PT | 1x18 DIN rail | 284x424x97 | 256x396x74 | Transparent plastic door | - |
|
|
|
|
|
| GPE24PO | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | White plastic door | - |
|
|
|
|
|
| GPE24PT | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | Transparent plastic door | - |
|
|
|
|
|
| GPE36PO3F | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | White plastic door | - |
|
|
|
|
|
| GPE36PT3F | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | Transparent plastic door | - |
|
|
|
|
|
| GPE54PO | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | White plastic door | - |
|
|
|
|
|
| GPE54PT | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | Transparent plastic door | - |
|
|
|
|
|
| BM4PO/RR | 1x4 DIN rail | 228x120x97 | 228x120x65 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| BM8PO/RR | 1x8 DIN rail | 248x210x97 | 228x190x65 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE12PO/RR | 1x12 DIN rail | 284x316x97 | 256x288x74 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE12PT/RR | 1x12 DIN rail | 284x316x97 | 256x288x74 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE18PO/RR | 1x18 DIN rail | 284x424x97 | 256x396x74 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE18PT/RR | 1x18 DIN rail | 284x424x97 | 256x396x74 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE24PO/RR | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE24PT/RR | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE36PO3F/RR | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE36PT3F/RR | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE54PO/RR | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE54PT/RR | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE12PO/RA | 1x12 DIN rail | 284x316x97 | 256x288x74 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE12PT/RA | 1x12 DIN rail | 284x316x97 | 256x288x74 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE18PO/RA | 1x18 DIN rail | 284x424x97 | 256x396x74 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE18PT/RA | 1x18 DIN rail | 284x424x97 | 256x396x74 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE24PO/RA | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE24PT/RA | 2x12 (24) DIN rail | 449x316x97 | 421x288x74 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE36PO3F/RA | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE36PT3F/RA | 3x12 (36) DIN rail | 574x316x97 | 546x288x74 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE54PO/RA | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE54PT/RA | 3x18 (54) DIN rail | 574x424x97 | 546x396x74 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| Reference | No. of modules | External dimensions | Dimensions of the flush-fit gap | Door type | Characteristics | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | (HeightxWidthxDepth) | dxf | 3D | |||||||
| GPE12PO/PH | 1x12 DIN rail | 284x316x97 | 256x288x72 | White plastic door | - |
|
|
|
|
|
| GPE12PT/PH | 1x12 DIN rail | 284x316x97 | 256x288x72 | Transparent plastic door | - |
|
|
|
|
|
| GPE18PO/PH | 1x18 DIN rail | 284x424x97 | 256x396x72 | White plastic door | - |
|
|
|
|
|
| GPE18PT/PH | 1x18 DIN rail | 284x424x97 | 256x396x72 | Transparent plastic door | - |
|
|
|
|
|
| GPE24PO/PH | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | White plastic door | - |
|
|
|
|
|
| GPE24PT/PH | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | Transparent plastic door | - |
|
|
|
|
|
| GPE36PO3F/PH | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | White plastic door | - |
|
|
|
|
|
| GPE36PT3F/PH | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | Transparent plastic door | - |
|
|
|
|
|
| GPE54PO/PH | 3x18 (54) raíl DIN | 574x424x97 | 546x396x72 | White plastic door | - |
|
|
|
|
|
| GPE54PT/PH | 3x18 (54) raíl DIN | 574x424x97 | 546x396x72 | Transparent plastic door | - |
|
|
|
|
|
| GPE12PO/PH/RR | 1x12 DIN rail | 284x316x97 | 256x288x72 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE12PT/PH/RR | 1x12 DIN rail | 284x316x97 | 256x288x72 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE18PO/PH/RR | 1x18 DIN rail | 284x424x97 | 256x396x72 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE18PT/PH/RR | 1x18 DIN rail | 284x424x97 | 256x396x72 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE24PO/PH/RR | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE24PT/PH/RR | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE36PO3F/PH/RR | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE36PT3F/PH/RR | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE54PO/PH/RR | 3x18 (54) raíl DIN | 574x424x97 | 546x396x72 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE54PT/PH/RR | 3x18 (54) raíl DIN | 574x424x97 | 546x396x72 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPE12PO/PH/RA | 1x12 DIN rail | 284x316x97 | 256x288x72 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE12PT/PH/RA | 1x12 DIN rail | 284x316x97 | 256x288x72 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE18PO/PH/RA | 1x18 DIN rail | 284x424x97 | 256x396x72 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE18PT/PH/RA | 1x18 DIN rail | 284x424x97 | 256x396x72 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE24PO/PH/RA | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE24PT/PH/RA | 2x12 (24) DIN rail | 449x316x97 | 421x288x72 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE36PO3F/PH/RA | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE36PT3F/PH/RA | 3x12 (36) DIN rail | 574x316x97 | 546x288x72 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE54PO/PH/RA | 3x18 (54) raíl DIN | 574x424x97 | 549x398x72 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPE54PT/PH/RA | 3x18 (54) rail DIN | 574x424x97 | 546x398x72 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
Product range
IP40 Flush-fit distribution boxes with 12, 18, 24, 36 and 54 modules of capacity.
Boxes to be flush-fitted in hollow walls, and boxes to be flush-fitted in brick walls.
Available with white or transparent door.
Boxes to be flush-fitted in hollow walls, and boxes to be flush-fitted in brick walls.
Available with white or transparent door.
Materials
Halogen-free plastic materials.
Base for brick walls made in PS and base for hollow walls made in ABS.
Frame and white door: ABS RAL 9003 white.
Transparent door in tinted PC.
Base for brick walls made in PS and base for hollow walls made in ABS.
Frame and white door: ABS RAL 9003 white.
Transparent door in tinted PC.
Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.
They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.
When several items are sent together, they are bundled together with transparent film.
They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.
Technical data
GOLD-P Serie
Certifications
CE CERT. GOLD FLUSH-FIT
Installation instructions
Installation instructions: Distribution boxes hollow walls GOLD – FLUSH-FIT Installation instructions: Lock with key GOLD
