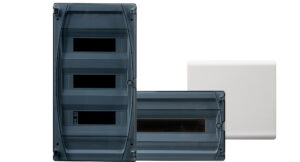

IP40 Surface distribution boxes with plastic door
Technical Data
| Degree of protection | IP40 |
| Resistance to impact | IK08 |
| Glow wire resistance | 650 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Clase II |
Certifications
Compliant with the Low Voltage Directive 2014/35/EU.
Standards: EN-IEC 60670-1-24 E IEC-EN 62208.
| Reference | No. of modules | Dimensions | Door type | Characteristics |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | dxf | 3D | |||||||
| GPS12PO | 1x12 DIN rail | 254x285x118 | White plastic door | - |
|
|
|
|
|
| GPS12PT | 1x12 DIN rail | 254x285x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS18PO | 1x18 DIN rail | 254x393x118 | White plastic door | - |
|
|
|
|
|
| GPS18PT | 1x18 DIN rail | 254x393x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS24PO | 2x12 (24) DIN rail | 419x285x118 | White plastic door | - |
|
|
|
|
|
| GPS24PT | 2x12 (24) DIN rail | 419x285x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS36PO2F | 2x18 (36) DIN rail | 419x393x118 | White plastic door | - |
|
|
|
|
|
| GPS36PT2F | 2x18 (36) DIN rail | 419x393x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS36PO3F | 3x12 (36) DIN rail | 544x285x118 | White plastic door | - |
|
|
|
|
|
| GPS36PT3F | 3x12 (36) DIN rail | 544x285x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS54PO | 3x18 (54) DIN rail | 544x393x118 | White plastic door | - |
|
|
|
|
|
| GPS54PT | 3x18 (54) DIN rail | 544x393x118 | Transparent plastic door | - |
|
|
|
|
|
| GPS12PO/RR | 1x12 DIN rail | 254x285x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS12PT/RR | 1x12 DIN rail | 254x285x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS18PO/RR | 1x18 DIN rail | 254x393x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS18PT/RR | 1x18 DIN rail | 254x393x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS24PO/RR | 2x12 (24) DIN rail | 419x285x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS24PT/RR | 2x12 (24) DIN rail | 419x285x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS36PO2F/RR | 2x18 (36) DIN rail | 419x393x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS36PT2F/RR | 2x18 (36) rail DIN | 419x393x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS36PO3F/RR | 3x12 (36) DIN rail | 544x285x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS36PT3F/RR | 3x12 (36) DIN rail | 544x285x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS54PO/RR | 3x18 (54) DIN rail | 544x393x118 | White plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS54PT/RR | 3x18 (54) DIN rail | 544x393x118 | Transparent plastic door | With screwed neutral and earth bars |
|
|
|
|
|
| GPS12PO/RA | 1x12 DIN rail | 254x285x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS12PT/RA | 1x12 DIN rail | 254x285x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS18PO/RA | 1x18 DIN rail | 254x393x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS18PT/RA | 1x18 DIN rail | 254x393x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS24PO/RA | 2x12 (24) DIN rail | 419x285x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS24PT/RA | 2x12 (24) DIN rail | 419x285x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS36PO2F/RA | 2x18 (36) DIN rail | 419x393x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS36PT2F/RA | 2x18 (36) DIN rail | 419x393x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS36PO3F/RA | 3x12 (36) DIN rail | 544x285x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS36PT3F/RA | 3x12 (36) DIN rail | 544x285x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS54PO/RA | 3x18 (54) DIN rail | 544x393x118 | White plastic door | With push-in neutral and earth bars |
|
|
|
|
|
| GPS54PT/RA | 3x18 (54) DIN rail | 544x393x118 | Transparent plastic door | With push-in neutral and earth bars |
|
|
|
|
|
Product range
IP40 Surface distribution boxes with 12, 18, 24, 36 and 54 modules of capacity.
Available with white or transparent door.
Available with white or transparent door.
Materials
Halogen-free plastic materials.
Base, frame and white door: ABS RAL 9003 white.
Transparent door in tinted PC.
Base, frame and white door: ABS RAL 9003 white.
Transparent door in tinted PC.
Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.
They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.
When several items are sent together, they are bundled together with transparent film.
They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.
Technical data
GOLD-P Series
Certifications
CE CERT. GOLD SURFACE
Installation instructions
Installation instructions: Distribution boxes GOLD SURFACE Installation instructions: Lock with key GOLD
