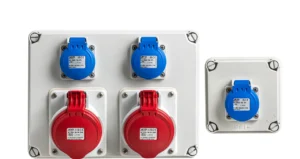

Junction boxes with power sockets
Technical Data
| Degree of protection | IP65-IP67* |
| Resistance to impact | IK07 |
| Glow wire resistance | 650 ºC |
| Ball pressure test | 70 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Double insulation | Class II |
| *Except EP048, EP088 and EX088 (IP54) references |
Certifications
According to low tension directive 2014/35/EU.
Norms: IEC 60670-22
Norms: IEC 60670-22
| Reference | Description | Box | Components | Components | Dimensions |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | ||||||
| 40892 | EX111 | Knock-out entries | 1 Schuko-type socket | 1x(IP54 2P+E 16A 230V) | 113x113x112 |
|
|
|
|
|
| 41493 | EL161 | Plain sides | 2 Schuko-type sockets | 2x(IP54 2P+E 16A 230V) | 121x166x140 |
|
|
|
|
|
| 41045 | EL161 | Plain sides | 1 Sloping flush-fit socket; 1 Schuko-type socket | 1x(IP44 3P+N+E 16A 400V) 1x(IP54 2P+E 16A 230V) | 121x166x140 |
|
|
|
|
|
| 40427 | EL171 | Plain sides | 4 Schuko-type sockets | 4x(IP54 2P+E 16A 230V) | 155x179x157 |
|
|
|
|
|
| 40936 | EL171 | Plain sides | 1 Sloping flush-fit socket; 2 Schuko-type socket | 1x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 155x179x157 |
|
|
|
|
|
| 41177 | EL231 | Plain sides | 6 Schuko-type sockets | 6x(IP54 2P+E 16A 230V) | 185x246x157 |
|
|
|
|
|
| 43377 | EL231 | Plain sides | 1 Sloping flush-fit socket; 2 Schuko-type socket | 1x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 185x246x157 |
|
|
|
|
|
| 42054 | EL231 | Plain sides | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 185x246x157 |
|
|
|
|
|
| 43322 | EL231 | Plain sides | 1 Sloping flush-fit socket; 3 Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 3x(IP54 2P+E 16A 230V) | 185x246x157 |
|
|
|
|
|
| 42209 | EX231 | Knock-out entries | 2 Sloping flush-fit sockets; 3 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+N+E 16A 400V) 3x(IP54 2P+E 16A 230V) | 185x246x157 |
|
|
|
|
|
HALOGEN-FREE PLASTIC MATERIALS - SURFACE - WITH ASSEMBLED AND WIRED POWER SOCKETS
Product range
Seven watertight junction boxes.
The three largest models are available with opaque or transparent cover.
A series of assemblies with standard power sockets is offered.
The three largest models are available with opaque or transparent cover.
A series of assemblies with standard power sockets is offered.
Materials
Halogen-free plastic materials.
Opaque base and cover: Shock-proof PS RAL 7035.
Transparent cover: PC tinted window, with UV protection.
Conical cable glands: PVC.
Opaque base and cover: Shock-proof PS RAL 7035.
Transparent cover: PC tinted window, with UV protection.
Conical cable glands: PVC.
Supply
The boxes are supplied individually, shrink-wrapped and in multiple cardboard packaging, according to minimum packaging units.
Boxes with conical cable glands are supplied with the cone assembled.
Boxes with conical cable glands are supplied with the cone assembled.
