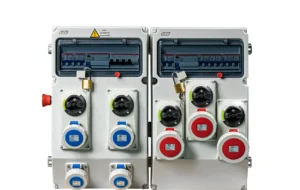

Plastic site panels
Technical Data
| Degree of protection of the unit | IP65 |
| In Pryma enclosure | IP67 |
| In Star enclosure | IP65 |
| In interlocking and Schuko-type sockets | IP67 |
| In the emergency push button | IP65 |
| Resistance to impact | IK08 |
| Glow wire resistance | |
| In the enclosure | 650 ºC |
| In power sockets | 960 ºC |
| Ball pressure test | |
| In the enclosure | 70 ºC |
| In power sockets | 125 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Double insulation | Class II |
Certifications
Compliant with the Low Voltage Directive 2014/35/EU.
Standards: UNE-EN 61439-1 (as applicable) and UNE-EN 61439-4 (in the specific requirements for site panels).
According to instruction ICT-BT-33 of the REBT 2002 (Low Voltage Electricity Regulation).
Standards: UNE-EN 61439-1 (as applicable) and UNE-EN 61439-4 (in the specific requirements for site panels).
According to instruction ICT-BT-33 of the REBT 2002 (Low Voltage Electricity Regulation).
| Reference | Dimensions | Capacity | Components |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | dxf | 3D | ||||||
| COM40PR67/P | 504x650x265 | 2x13 modules | 4 interlocking sockets; 2 Schuko-type sockets; Emergency stop button |
|
|
|
|
|
| COT63PR/P+ | 504x650x265 | 2x13 modules | 5 interlocking sockets; Emergency stop button |
|
|
|
|
|
| COT125PR/P | 504x1125x265 | 3x13 modules | 7 interlocking sockets; Emergency stop button |
|
|
|
|
|
| 14418 | 504x650x265 | 2x13 modules | 5 interlocking sockets; 2 Schuko-type sockets; Emergency stop button |
|
|
|
|
|
| 14421 | 504x650x265 | 2x13 modules | 5 interlocking sockets; Emergency stop button |
|
|
|
|
|
Product range
Models in Pryma IP67 enclosure: 26 – 39 – 52 and 56-module capacity with transparent window.
Models in Star IP65 enclosure: 24 – 30 and 46-module capacity with transparent window.
Any assembly combination is possible, with interlocking sockets assembled and wired, IP67 Schuko-type sockets, protections and emergency push-button.
Single-phase 40A.
Triple-phase 63A.
Triple-phase 100A.
Triple-phase 125A.
Models in Star IP65 enclosure: 24 – 30 and 46-module capacity with transparent window.
Any assembly combination is possible, with interlocking sockets assembled and wired, IP67 Schuko-type sockets, protections and emergency push-button.
Single-phase 40A.
Triple-phase 63A.
Triple-phase 100A.
Triple-phase 125A.
Materials
Halogen-free plastic materials.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Supply
They are supplied completely assembled according to the specifications of each reference, protected with shrinkwrapped plastic and placed in multiple cardboard packaging, depending on the number of units ordered.
Installation instructions
Installation instructions: Canopy Support
