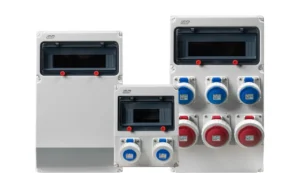

IP67 Boxes with assembled and wired power sockets
Technical Data
| Degree of protection | IP67 |
| Resistance to impact | IK08 |
| Glow wire resistance | 650 ºC |
| Ball pressure test | 70 ºC |
| Ambient temperature range | -25 ºC / +40 ºC |
| Double insulation | Class II |
Certifications
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
| Reference | No. of modules | Components | Components | Dimensions |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| No of sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | |||||
| V8PK2/67 | 1x9 DIN-rail | 2 Schuko-type sockets | 2x(IP67 - 2P+E - 16A 230V) | 284x222x185 |
|
|
|
|
|
| V8PA2/67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 - 3P+E 16A 400V) 1x(IP67 2P+E 16A 230V) | 284x222x185 |
|
|
|
|
|
| V8PV2/67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 - 3P+N+E - 16A - 400V) 1x(IP67 - 2P+E - 16A - 230V) | 284x222x185 |
|
|
|
|
|
| V8PB2/67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 - 3P+E - 32A - 400V) 1x(IP67 - 2P+E - 16A - 230V) | 284x222x185 |
|
|
|
|
|
| 40018/67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 - 3P+N+E - 32A - 400V) 1x(IP67 - 2P+E - 16A - 230V) | 284x222x185 |
|
|
|
|
|
| 40128/67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP67 - 3P+N+E - 16A - 400V) 1x(IP67 - 3P+N+E - 32A - 400V) 2x(IP67 - 2P+E - 16A - 230V) | 369x222x190 |
|
|
|
|
|
| V8MA2/67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP67 - 3P+E - 16A - 400V) 1x(IP67 - 3P+E - 32A - 400V) 2x(IP67 - 2P+E - 16A - 230V) | 369x222x190 |
|
|
|
|
|
| V8MC2/67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP67 - 3P+E - 16A - 400V) 2x(IP67 - 2P+E - 16A - 230V) | 369x222x190 |
|
|
|
|
|
| 40123/67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP67 - 3P+N+E - 16A - 400V) 2x(IP67 - 2P+E - 16A - 230V) | 369x222x190 |
|
|
|
|
|
| V2GL2/67 | 1x13 DIN-rail | 6 Sloping flush-fit sockets | 3x(IP67 - 2P+E - 16A - 230V) 3x(IP67 - 3P+E - 32A - 400V) | 504x297x235 |
|
|
|
|
|
HALOGEN-FREE PLASTIC MATERIALS - IP67 - SURFACE - WITH ASSEMBLED AND WIRED POWER SOCKETS
| Reference | No. of modules | Components | Components | Dimensions | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| No of sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | |||||
| V8PK2/P67 | 1x9 DIN-rail | 2 Schuko-type sockets | 2x(IP67 - 2P+E - 16A 220V) | 284x222x122 |
|
|
|
|
|
| V8PA2/P67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 - 3P+E 16A 380V) 1x(IP67 2P+E 16A 220V) | 284x222x122 |
|
|
|
|
|
| V8PV2/P67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 3P+N+E 16A 380V) 1x(IP67 2P+E 16A 220V) | 284x222x122 |
|
|
|
|
|
| V8PB2/P67 | 1x9 DIN-rail | 1 Sloping flush-fit socket; 1 Schuko-type sockets | 1x(IP67 3P+E 32A 380V) 1x(IP67 2P+E 16A 220V) | 284x222x122 |
|
|
|
|
|
| V8MA2/P67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP67 3P+E 16A 380V) 1x(IP67 3P+E 32A 380V) 2x(IP67 2P+E 16A 220V) | 369x222x130 |
|
|
|
|
|
| V8MC2/P67 | 1x9 DIN-rail | 2 Sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP67 3P+E 16A 380V) 2x(IP67 2P+E 16A 220V) | 369x222x130 |
|
|
|
|
|
| V2GL2/P67 | 1x13 DIN-rail | 6 Sloping flush-fit sockets | 3x(IP67 2P+E 16A 220V) 3x(IP67 3P+E 32A 380V) | 504x297x177 |
|
|
|
|
|
HALOGEN-FREE PLASTIC MATERIALS - IP67 - SURFACE - BOXES WITH ASSEMBLED AND WIRED POWER SOCKETS and protections.
Product range
Surface enclosures with a capacity of 9, 13 and 26 modules with transparent window.
Materials
Halogen-free plastic materials.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Supply
Supplied in individual cardboard packaging.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled to the base for the 9-module models.
For the 13- and 26-module models they are supplied disassembled in a bag containing the rail, supports and screws.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled to the base for the 9-module models.
For the 13- and 26-module models they are supplied disassembled in a bag containing the rail, supports and screws.
