ROC

HomeProductsROC

IP66 Polyester double insulation boxes

Technical data

Degree of protection IP66
Resistance to impact IK09
Test of resistance to glow wire 960 ºC
Ambient temperature range -30 ºC / +60 ºC
Dielectric strength >5 kV
Protection against contacts Double insulation
Thermal class A 120 ºC
Maximum rated operating voltage 1000 V AC / 1500 V DC
Double insulation Class II

Certifications

CE
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
Print
Reference Modules Dimensions (mm) Dimensions (mm) Dimensions (mm) Door type Drawings TD
Height Width Depth pdf dxf 3D
Reference Modules Dimensions (mm) Dimensions (mm) Dimensions (mm) Door type Drawings TD
Height Width Depth pdf dxf 3D

Product range

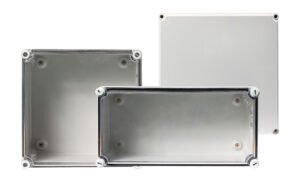

Standard IP66 boxes with polyester case and transparent polycarbonate lid.
IP66 boxes with polyester case and opaque polycarbonate lid.
Range: 32-33-34-42-44-63-64-66-84-86 modules.
The 32-34-44-63-64-66 modules admit the high-lid variant.
Set of 10 modular insulation boxes with height and width dimensions that are multiples of one module.
1 module = 90 mm.

Materials

Bases manufactured in RAL 7035 grey fibreglass-reinforced polyester.
Transparent lids made of polycarbonate.
Opaque lids manufactured in RAL 7035 grey polycarbonate.
Main characteristics.
Halogen-free.
Non-hygroscopic (zero water absorption).
Double insulation.
Corrosion-resistant.
Alkali-resistant.
Transparent and opaque lids with ultraviolet (UV) protection.

Supply

Supplied in a single box per packaging multiples.
Click here  to download drawings (pdf, dxf, igs) and technical data sheets

Accessories
