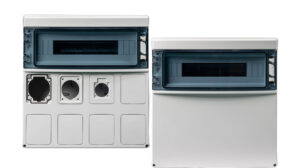

IP65 Boxes for industrial sockets
Technical Data
| Degree of protection | IP65 |
| Resistance to impact | IK08 |
| Glow wire resistance | 650 ºC |
| Ambient temperature range | -25 ºC / 40ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
Certifications
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
| Reference | No. of modules | Dimensions | Characteristics |  |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | dxf | 3D | ||||||
| CSNPLUS | - | 436x142x124 | - |
|
|
|
|
|
| CSN4PT | 1x4 DIN rail | 385x102x105 | - |
|
|
|
|
|
| CSN6PT | 1x6 DIN rail | 436x142x137 | - |
|
|
|
|
|
| CSN9PT | 1x9 DIN rail | 436x210x137 | - |
|
|
|
|
|
| CSN12PT | 1x12 DIN rail | 436x310x147 | - |
|
|
|
|
|
| CSN18PT | 1x18 DIN rail | 436x418x147 | - |
|
|
|
|
|
| CSN24PT | 2x12 (24) DIN rail | 688x310x147 | - |
|
|
|
|
|
| CSN36PT | 2x18 (36) DIN rail | 728x418x147 | - |
|
|
|
|
|
| CSNPLUS/RR | - | 436x142x124 | With neutral and earth bars |
|
|
|
|
|
| CSN4PT/R | 1x4 DIN rail | 385x102x105 | With neutral or earth bars |
|
|
|
|
|
| CSN6PT/RR | 1x6 DIN rail | 436x142x137 | With neutral and earth bars |
|
|
|
|
|
| CSN9PT/RR | 1x9 DIN rail | 436x210x137 | With neutral and earth bars |
|
|
|
|
|
| CSN12PT/RR | 1x12 DIN rail | 436x310x147 | With neutral and earth bars |
|
|
|
|
|
| CSN18PT/RR | 1x18 DIN rail | 436x418x147 | With neutral and earth bars |
|
|
|
|
|
| CSN24PT/RR | 2x12 (24) DIN rail | 688x310x147 | With neutral and earth bars |
|
|
|
|
|
| CSN36PT/RR | 2x18 (36) DIN rail | 728x418x147 | With neutral and earth bars |
|
|
|
|
|
| Reference | No. of modules | Dimensions | No. of covers | Characteristics | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| (HeightxWidthxDepth) | dxf | 3D | |||||||
| PCSNPLUS | - | 436x142x124 | 3 - Plain / 1 - 16A/Schuko IP67 / 1 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN6PT | 1x6 DIN-rail | 436x142x137 | 2 - Plain / 1 - 16A/Schuko IP67 / 1 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN9PT | 1x9 DIN-rail | 436x210x137 | 4 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN12PT | 1x12 DIN-rail | 436x310x147 | 6 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN18PT | 1x18 DIN-rail | 436x418x147 | 8 - Plain / 3 - 16A/Schuko IP67 / 4 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN24PT | 2x12 (24) DIN-rail | 688x310x147 | 6 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSN36PT | 2x18 (36) DIN-rail | 728x418x147 | 8 - Plain / 3 - 16A/Schuko IP67 / 4 - Schuko IP44/IP54 | - |
|
|
|
|
|
| PCSNPLUS/RR | - | 436x142x124 | 3 - Plain / 1 - 16A/Schuko IP67 / 1 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN6PT/RR | 1x6 DIN-rail | 436x142x137 | 2 - Plain / 1 - 16A/Schuko IP67 / 1 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN9PT/RR | 1x9 DIN-rail | 436x210x137 | 4 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN12PT/RR | 1x12 DIN-rail | 436x310x147 | 6 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN18PT/RR | 1x18 DIN-rail | 436x418x147 | 8 - Plain / 3 - 16A/Schuko IP67 / 4 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN24PT/RR | 2x12 (24) DIN-rail | 688x310x147 | 6 - Plain / 2 - 16A/Schuko IP67 / 2 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| PCSN36PT/RR | 2x18 (36) DIN-rail | 728x418x147 | 8 - Plain / 3 - 16A/Schuko IP67 / 4 - Schuko IP44/IP54 | With neutral and earth bars |
|
|
|
|
|
| Reference | No. of modules | Components | Components | Dimensions | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| Sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | |||||
| SV4PK2 | 1x6 DIN rail | 2 Schuko-type sockets | 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV4100 | 1x6 DIN rail | 4 Schuko-type sockets | 4x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV6302 | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| 40269 | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV6305 | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| 40270 | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+N+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV9301 | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| 40298 | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV9302 | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| 40299 | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 1x(IP44 3P+N+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV9100 | 1x9 DIN rail | 6 Schuko-type sockets | 6x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV12100 | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 4x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12300 | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 4x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12301 | 1x12 DIN rail | 3 sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12302 | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 2x(IP44 3P+E 32A 400V) 4x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV18303 | 1x18 DIN rail | 6 sloping flush-fit sockets | 3x(IP44 2P+E 16A 230V) 3x(IP44 3P+E 32A 400V) | 436x418x210 |
|
|
|
|
|
| SV18100 | 1x18 DIN rail | 4 sloping flush-fit sockets; 4 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+N+E 16A 400V) 1x(IP44 3P+E 32A 400V) 1x(IP44 3P+N+E 32A 400V) 4x(IP54 2P+E 16A 230V) | 436x418x210 |
|
|
|
|
|
| Reference | No. of modules | Components | Components | Dimensions | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|
| Sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | |||||
| SV4PK2/P | 1x6 DIN rail | 2 Schuko-type sockets | 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV4100/P | 1x6 DIN rail | 4 Schuko-type sockets | 4x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV6302/P | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV6305/P | 1x6 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x142x180 |
|
|
|
|
|
| SV9301/P | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV9302/P | 1x9 DIN rail | 2 sloping flush-fit sockets; 2 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV9100/P | 1x9 DIN rail | 6 Schuko-type sockets | 6x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV9101/P | 1x9 DIN rail | 1 sloping flush-fit socket; 2 Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x210x180 |
|
|
|
|
|
| SV12100/P | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12300/P | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12301/P | 1x12 DIN rail | 3 sloping flush-fit sockets; 2 Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV12302/P | 1x12 DIN rail | 2 sloping flush-fit sockets; 4 Schuko-type sockets | 2x(IP44 3P+E 32A 400V) 4x(IP54 2P+E 16A 230V) | 436x310x210 |
|
|
|
|
|
| SV18303/P | 1x18 DIN rail | 6 sloping flush-fit sockets | 3x(IP44 2P+E 16A 230V) 3x(IP44 3P+E 32A 400V) | 436x418x210 |
|
|
|
|
|
| SV18100/P | 1x18 DIN rail | 4 sloping flush-fit sockets; 4 Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+N+E 16A 400V) 1x(IP44 3P+E 32A 400V) 1x(IP44 3P+N+E 32A 400V) 4x(IP54 2P+E 16A 230V) | 436x418x210 |
|
|
|
|
|
| Reference | No. of modules | Components | Components | Protections | Dimensions | |
Drawings | TD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Sockets | Characteristics | (HeightxWidthxDepth) | dxf | 3D | ||||||
| SV4PK2/F | 1x6 DIN rail | 2 french Schuko-type sockets 2P+E 16A | 2x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| SV4100/F | 1x6 DIN rail | 4 french Schuko-type sockets | 4x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| SV6302/F | 1x6 DIN rail | 1 Sloping flush-fit socket; 2 french Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| 40269/F | 1x6 DIN rail | 1 Sloping flush-fit socket; 2 french Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| SV6305/F | 1x6 DIN rail | 1 Sloping flush-fit socket; 2 french Schuko-type sockets | 1x(IP44 3P+E 32A 400V) 1x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| 40270/F | 1x6 DIN rail | 1 Sloping flush-fit socket; 2 french Schuko-type sockets | 1x(IP44 3P+N+E 32A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x142x180 |
|
|
|
|
|
| SV9301/F | 1x9 DIN rail | 2 Sloping flush-fit sockets; 2 french Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 2x(IP54 16A 2P+E 230V) | No | 436x210x180 |
|
|
|
|
|
| 40298/F | 1x9 DIN rail | 2 Sloping flush-fit sockets; 2 french Schuko-type sockets | 2x(IP44 3P+N+E 16A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x210x180 |
|
|
|
|
|
| SV9302/F | 1x9 DIN rail | 2 Sloping flush-fit sockets; 2 french Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 16A 2P+E 230V) | No | 436x210x180 |
|
|
|
|
|
| 40299/F | 1x9 DIN rail | 2 Sloping flush-fit sockets; 2 french Schuko-type sockets | 1x(IP44 3P+N+E 16A 400V) 1x(IP44 3P+N+E 32A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x210x180 |
|
|
|
|
|
| SV9100/F | 1x9 DIN rail | 9 french Schuko-type sockets | 9x(IP54 2P+E 16A 230V) | No | 436x210x180 |
|
|
|
|
|
| SV12100/F | 1x12 DIN rail | 2 Sloping flush-fit sockets; 4 french Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 4x(IP54 16A 2P+E 230V) | No | 436x310x210 |
|
|
|
|
|
| SV12300/F | 1x12 DIN rail | 2 Sloping flush-fit sockets; 4 french Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 4x(IP54 16A 2P+E 230V) | No | 436x310x210 |
|
|
|
|
|
| SV12302/F | 1x12 DIN rail | 2 Sloping flush-fit sockets; 4 french Schuko-type sockets | 2x(IP44 3P+E 32A 400V) 4x(IP54 2P+E 16A 230V) | No | 436x310x210 |
|
|
|
|
|
| SV12301/F | 1x12 DIN rail | 3 Sloping flush-fit sockets; 2 french Schuko-type sockets | 2x(IP44 3P+E 16A 400V) 1x(IP44 3P+E 32A 400V) 2x(IP54 2P+E 16A 230V) | No | 436x310x147 |
|
|
|
|
|
| SV18100/F | 1x18 DIN rail | 4 Sloping flush-fit sockets; 4 french Schuko-type sockets | 1x(IP44 3P+E 16A 400V) 1x(IP44 3P+N+E 16A 400V) 1x(IP44 3P+E 32A 400V) 1x(IP44 3P+N+E 32A 400V) 4x(IP54 2P+E 16A 230V) | No | 436x418x210 |
|
|
|
|
|
Product range
Surface enclosures with a capacity of 6, 9, 12, 18 and 24 modules with transparent window.
Materials
Halogen-free plastic materials.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.
Supply
Supplied in individual cardboard packaging.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled in all references.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled in all references.
Technical data
ECO-STAR Joining System Star Series
Certifications
CE CERTIFICATE STAR VDE CERFICATE STAR PLAIN BOXES
Installation instructions
Installation instructions: Star Series Boxes – 24/36 Modules Installation instructions: Star Series Boxes – CSNPLUS
